Waveshare Modbus RTU 16-Ch Relay Module, RS485 Interface, with Multiple Isolation Protection Circuits,Apply to Industrial Control,Smart Home,Smart Agriculture,Breeding and Farming

Type de connecteur: Vis
Type de contact: 1NO 1NC
Note actuelle: 10 A
Type de fixation: Montage sur rail DIN
Marque: Waveshare
Mode de fonctionnement: Automatique
Tension de la bobine: 5 Volts
Note actuelle du contact: 10 A
Tension de commutation maximale: 5 Volts
Tension de commutation minimale: 5 Volts

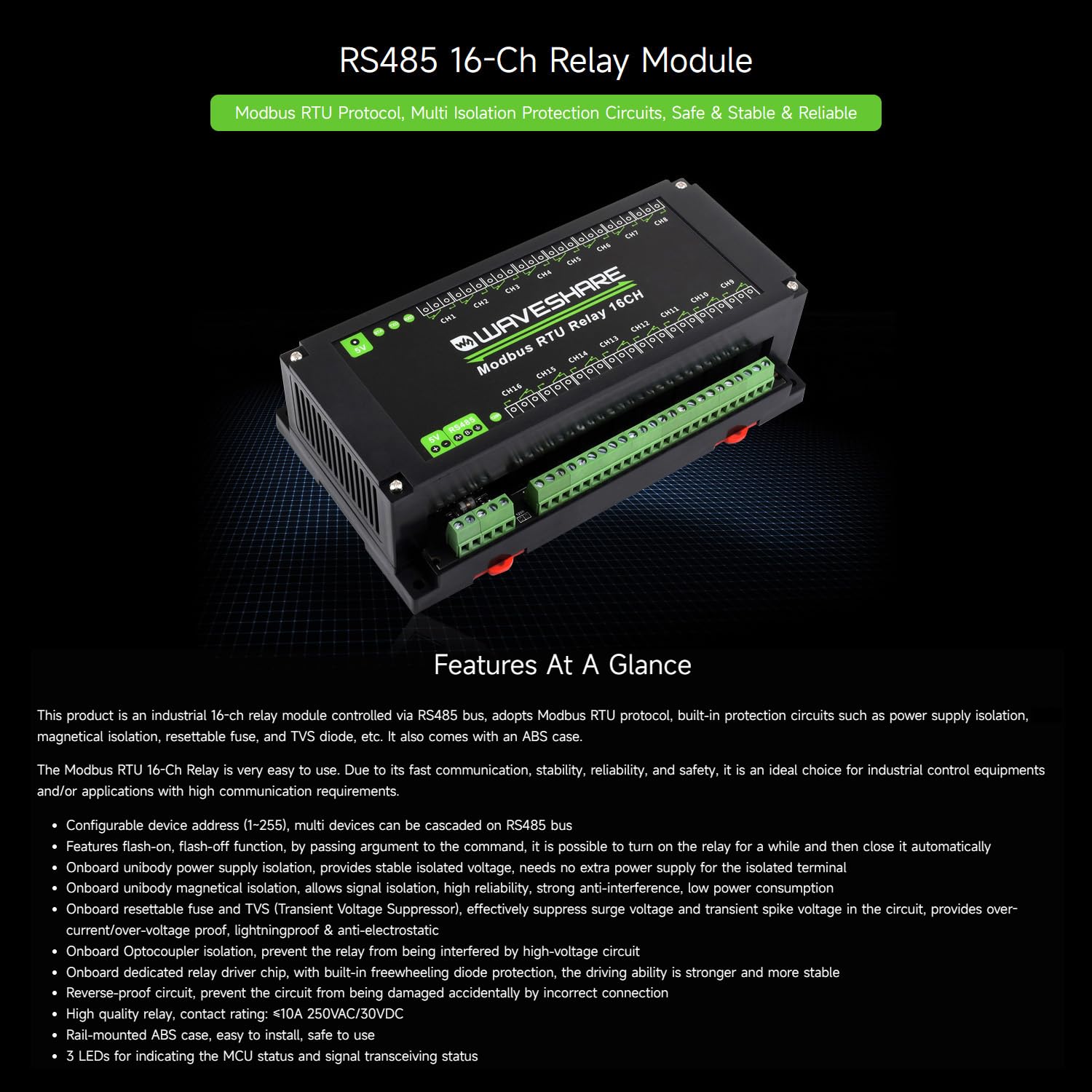

- This product is an industrial 16-ch relay module controlled via RS485 bus, adopts Modbus RTU protocol, built-in protection circuits such as power supply isolation, ADI magnetical isolation, resettable fuse, and TVS diode, etc. It also comes with an ABS case.
- The Modbus RTU 16-Ch Relay is an extremely user-friendly device. With its fast communication, stability, reliability, and safety features, it stands out as an excellent option for industrial control equipment and applications that demand high communication capabilities.Rail-mounted ABS case, easy to install, safe to use.

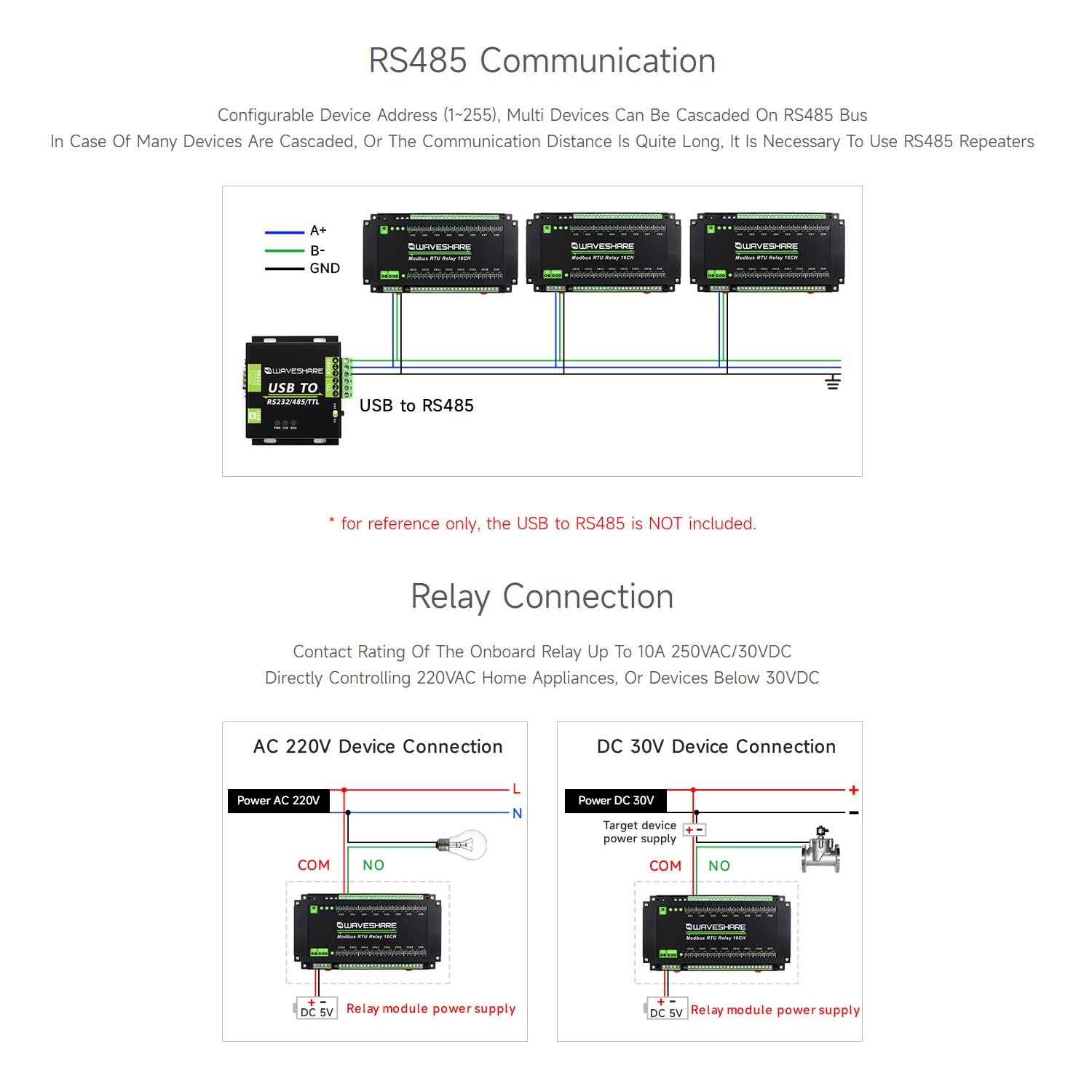

- Configurable device address (1~255), multi devices can be cascaded on RS485 bus.High quality relay, contact rating: ≤10A 250VAC/30VDC.Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically.

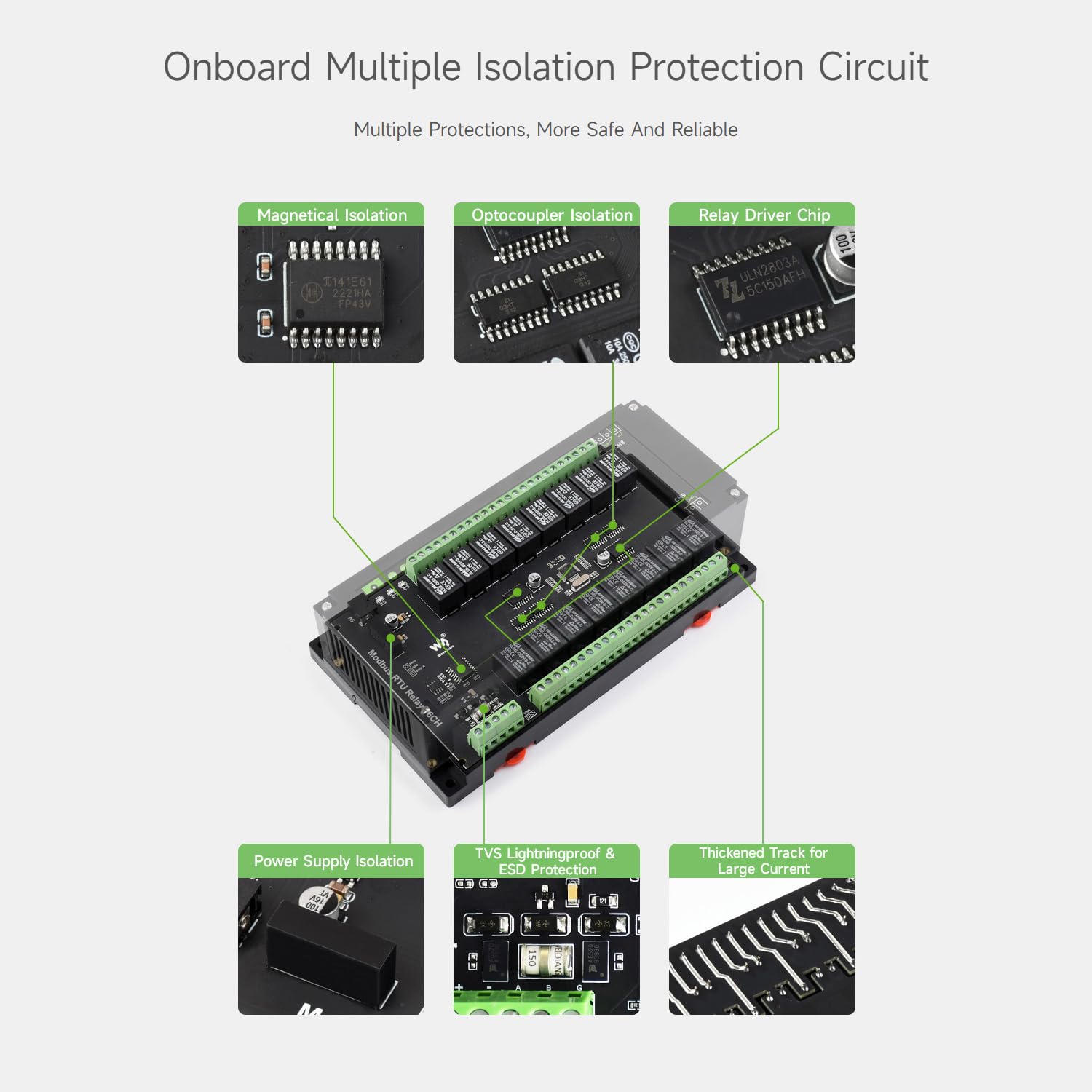

- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal.Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic.
- Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit.Onboard dedicated relay driver chip, with built-in freewheeling diode protection, the driving ability is stronger and more stable.Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection.3 LEDs for indicating the MCU status and signal transceiving status.
