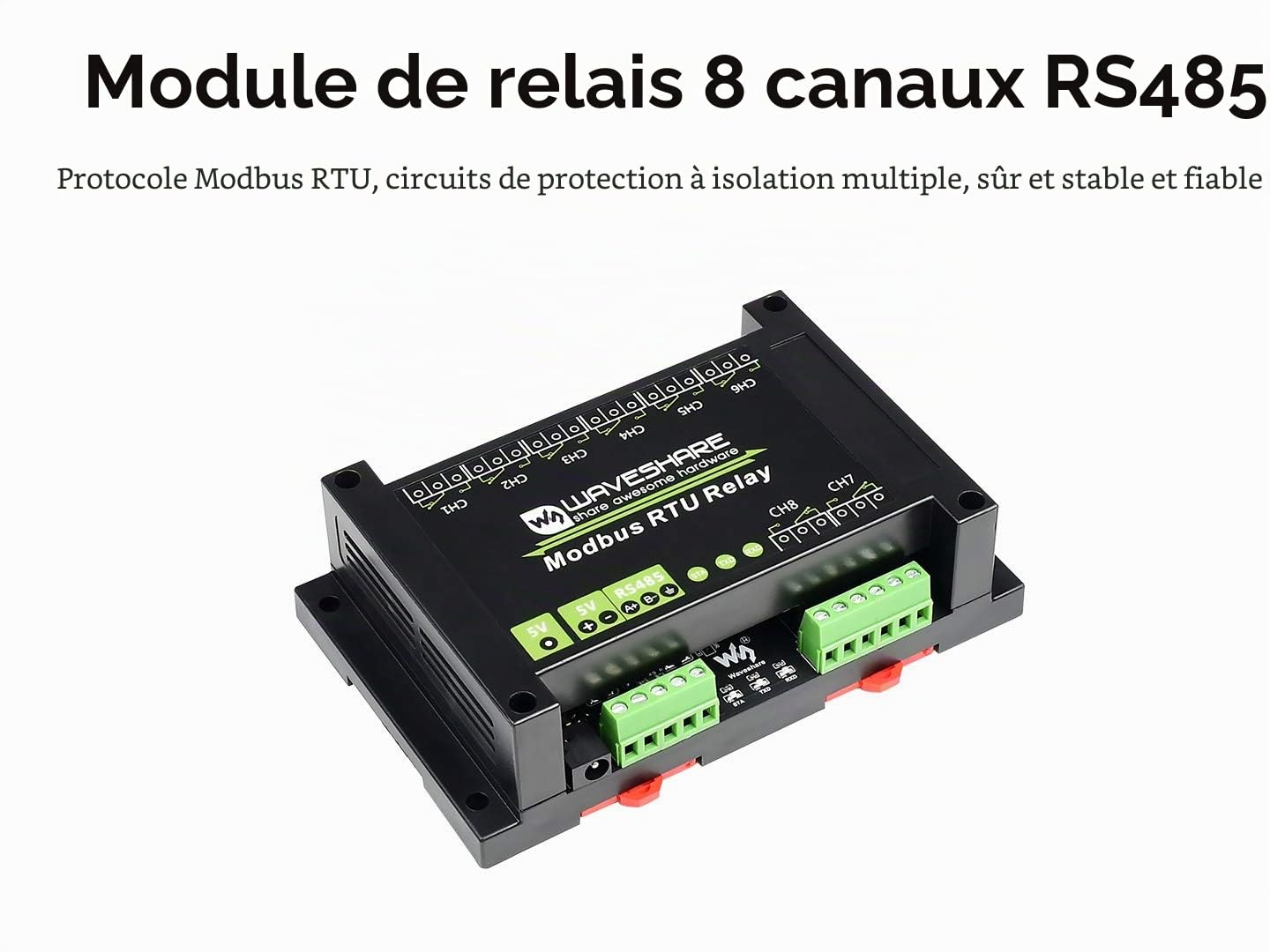

Waveshare Industrial Modbus RTU Relay Module 8-Ch Relay with RS485 Interface Multi Isolation Protection Circuits for Industrial Control Equipments

Type de connecteur: Serre-joint
Matériau de contact: Argent
Type de contact: Normalement ouvert
Note actuelle: 10 A
Type de fixation: Rail-mounted
Marque: Waveshare
Mode de fonctionnement: Automatique
Puissance en watts: 600 Watts
Note actuelle du contact: 10 A
Tension de commutation minimale: 30 Volts (courant continu)

- This industrial 8-ch relay module controls via RS485 bus, utilizing Modbus RTU protocol. It features embedded protection circuits such as power isolation, ADI magnetical isolation, and TVS diode, etc.
- Due to its fast communication, stability, reliability, and safety, it is ideal for industrial control equipments and/or applications with high communication requirement. It also comes with an Rail-mounted ABS enclosure, easy to install, safe to use

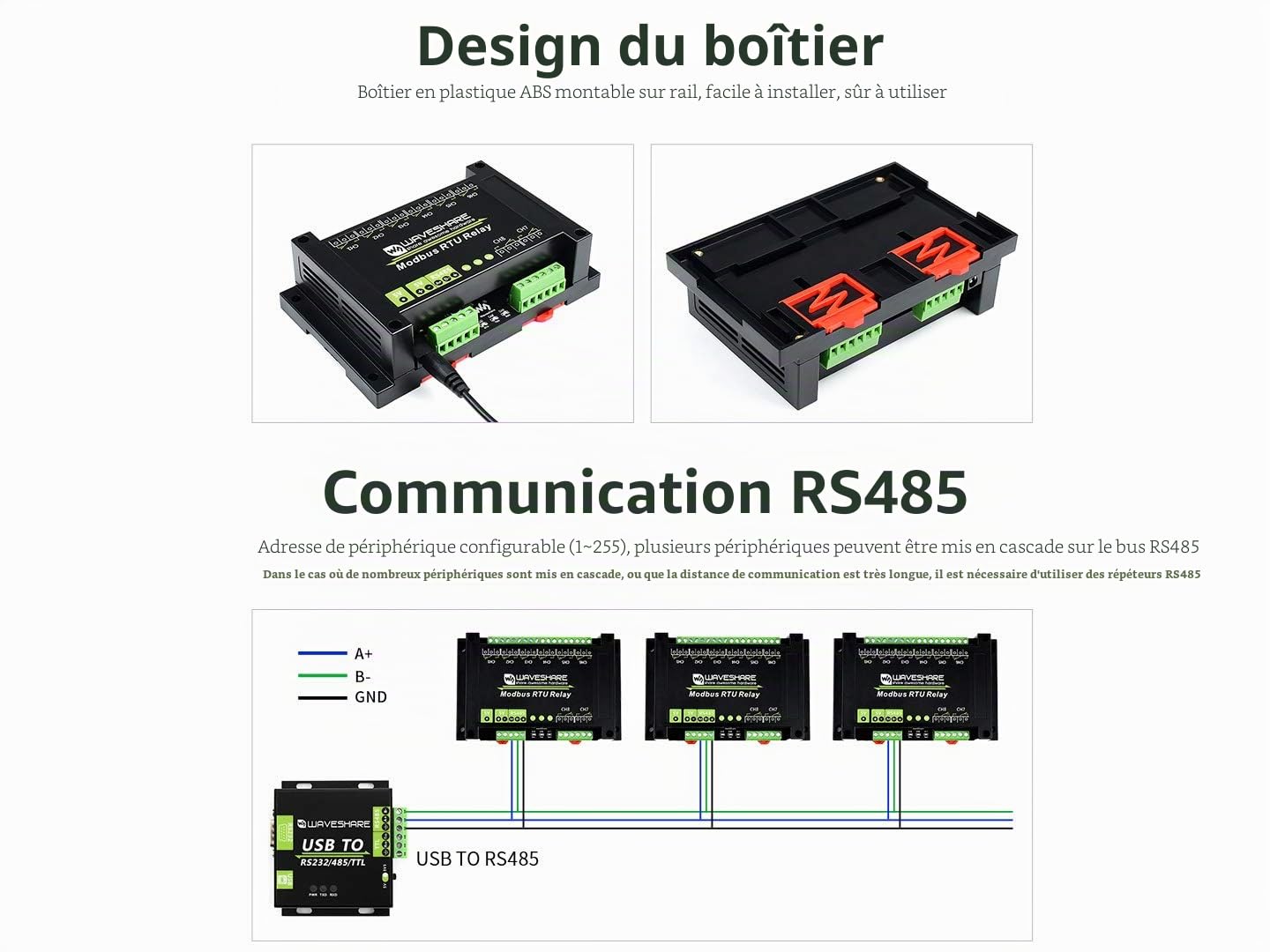

- Configurable device address (1~255), multi devices can be cascaded on RS485 bus. Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
- Onboard unibody power supply isolation. Onboard unibody ADI magnetical isolation. Onboard TVS (Transient Voltage Suppressor). Onboard Optocoupler isolation

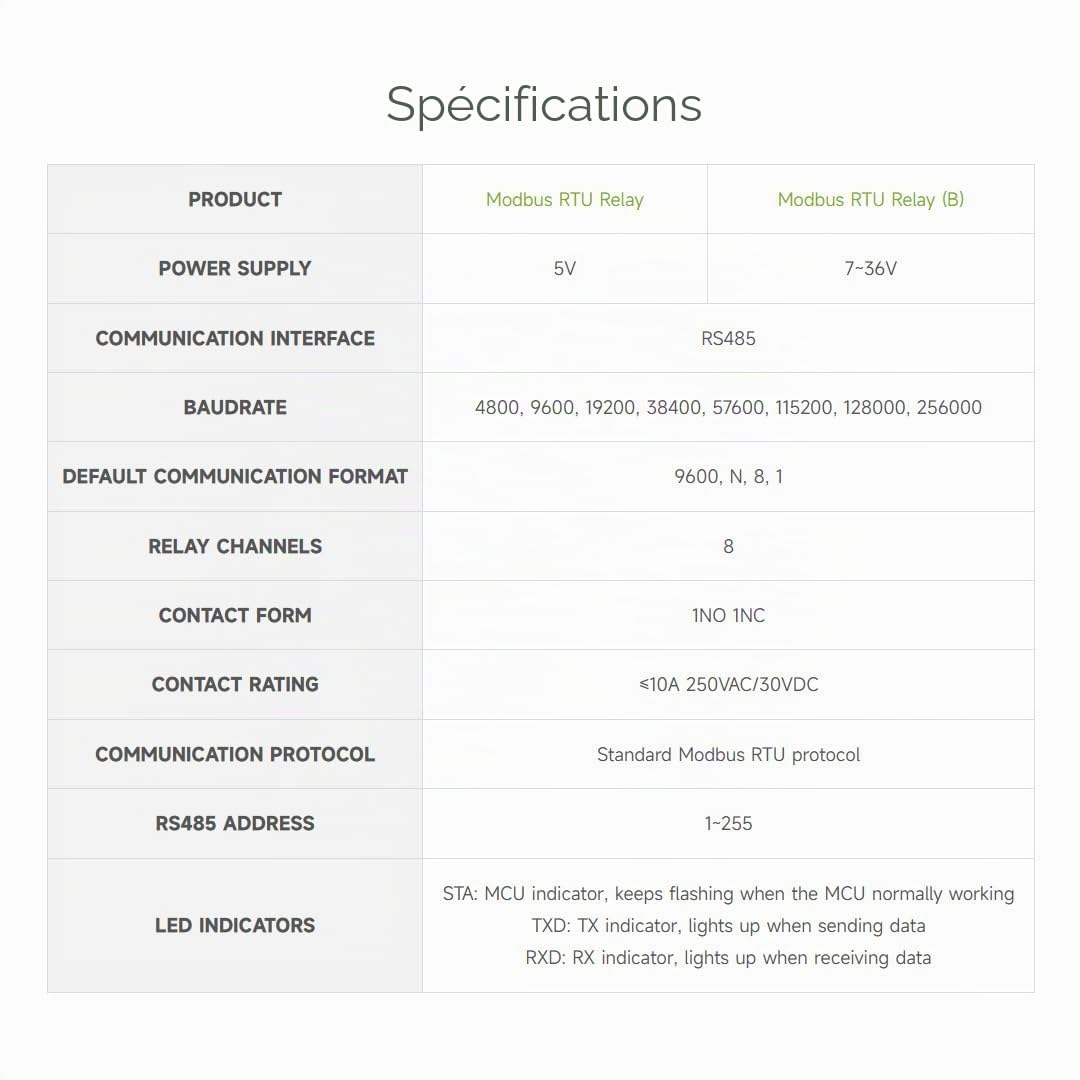

- High quality relay, contact rating: ≤10A 250VAC/30VDC. 3 LEDs for indicating the MCU status and signal transceiving status. Provide online user manual, please refer to while using
