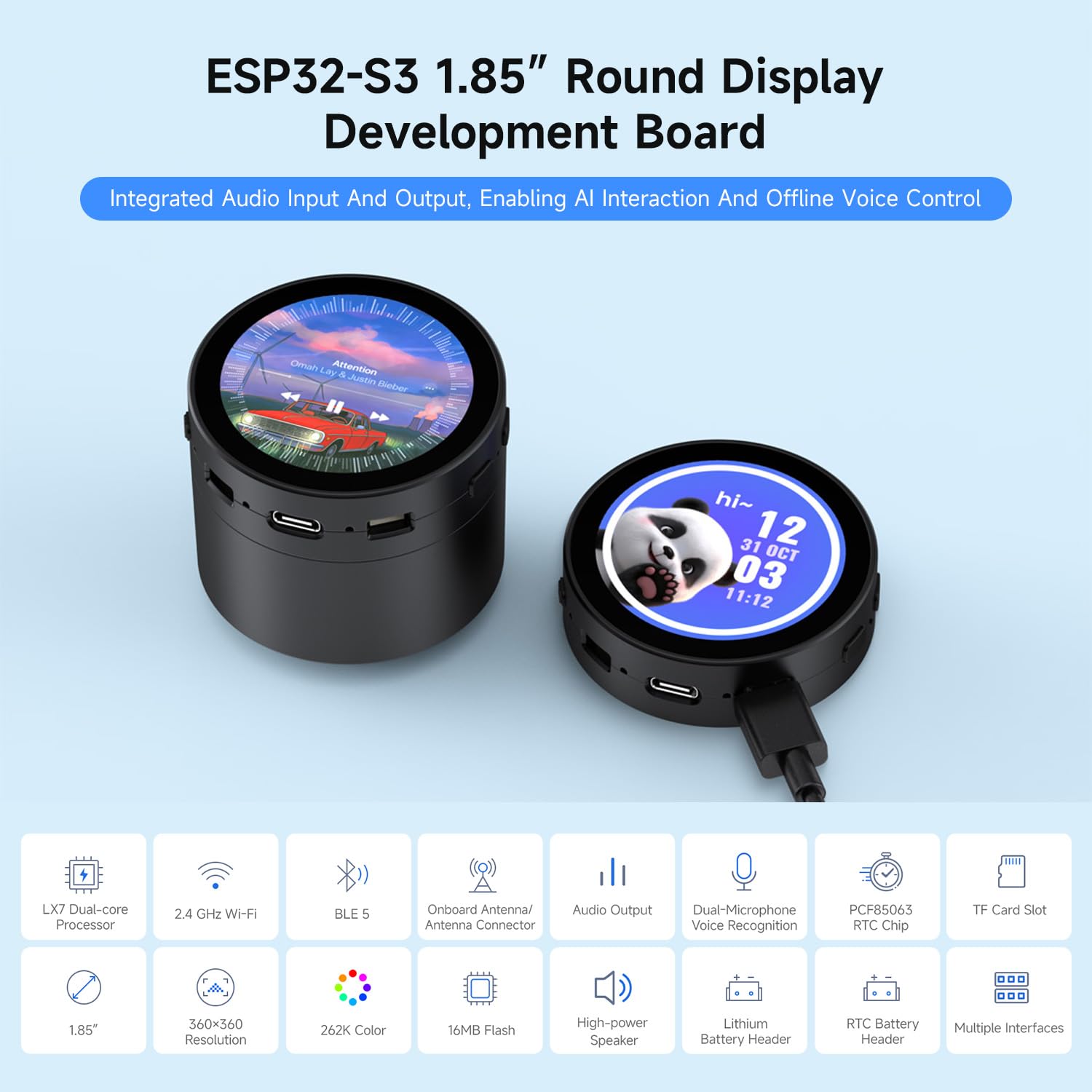

Waveshare ESP32-S3 1.85inch Round LCD Development Board, 360x360, Supports Wi-FI & BT BLE 5, AI Speech, ESP32 with Display with Smart Speaker Box(3.7V Lithium Batt Not Included)

Marque: Waveshare
Socket du CPU: BGA 1023
Appareils compatibles: Ordinateur personnel
Processeurs compatibles: ESP32-S3
Plateforme: Toutes plates-formes
Nom de modèle: ESP32-S3
Taille maximale de la mémoire RAM: 8 MB
Fabricant: Waveshare
Nombre d'unités: 1 Board
Nombre d'articles: 1

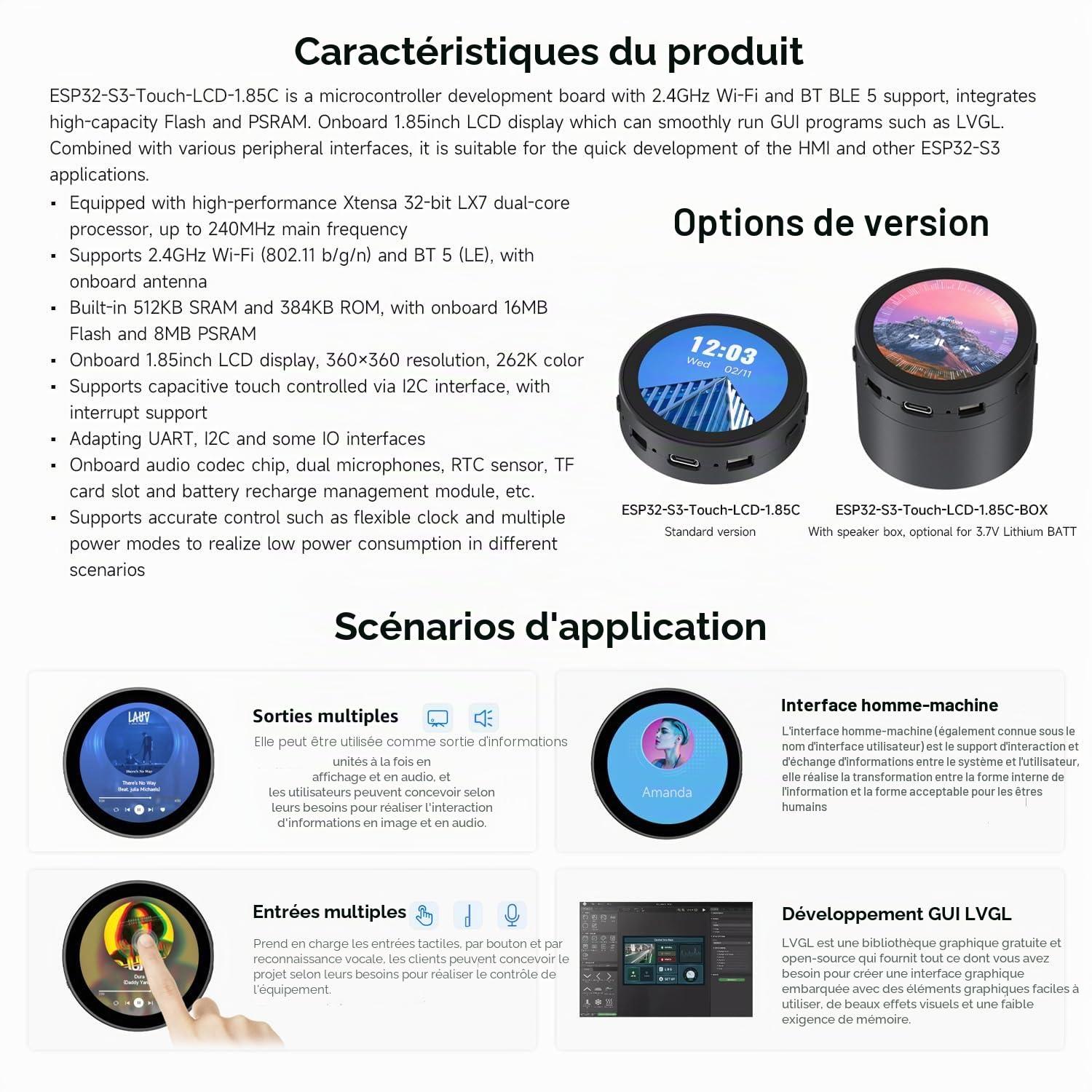

- ESP32-S3-Touch-LCD-1.85C-BOX-EN is a microcontroller development board with Smart Speaker Box(3.7V Lithium batt not included) with 2.4GHz Wi-Fi and BT BLE 5 support, integrates high-capacity Flash and PStatic RAM

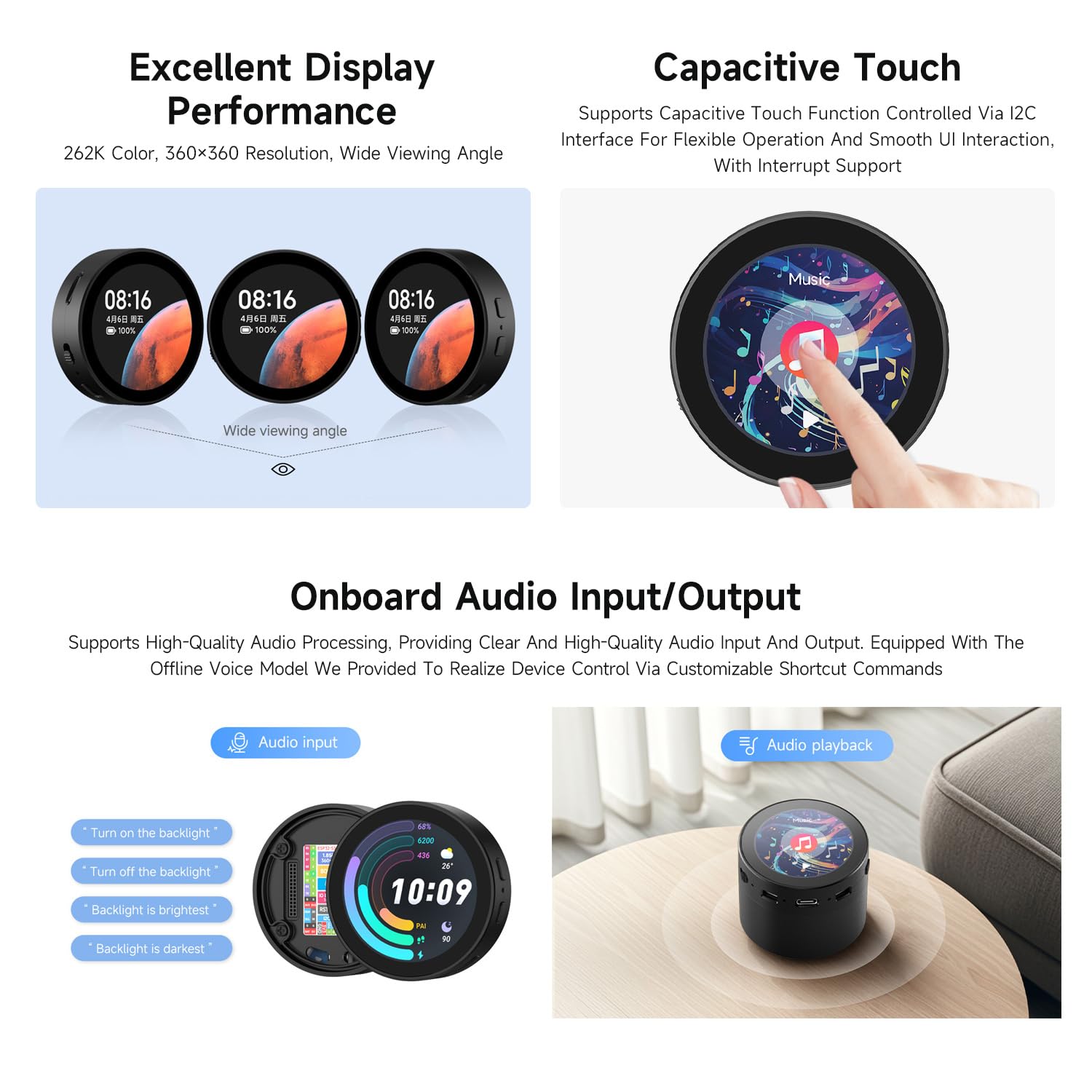

- Onboard 1.85inch LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, it is suitable for the quick development of the HMI and other ESP32-S3 applications.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT 5 (LE), with onboard antenna
- Built-in 512KB Static RAM and 384KB ROM, with onboard 16MB Flash and 8MB PStatic RAM. Onboard 1.85inch LCD display, 360x360 resolution, 262K color. Supports capacitive touch controlled via I2C interface, with interrupt support

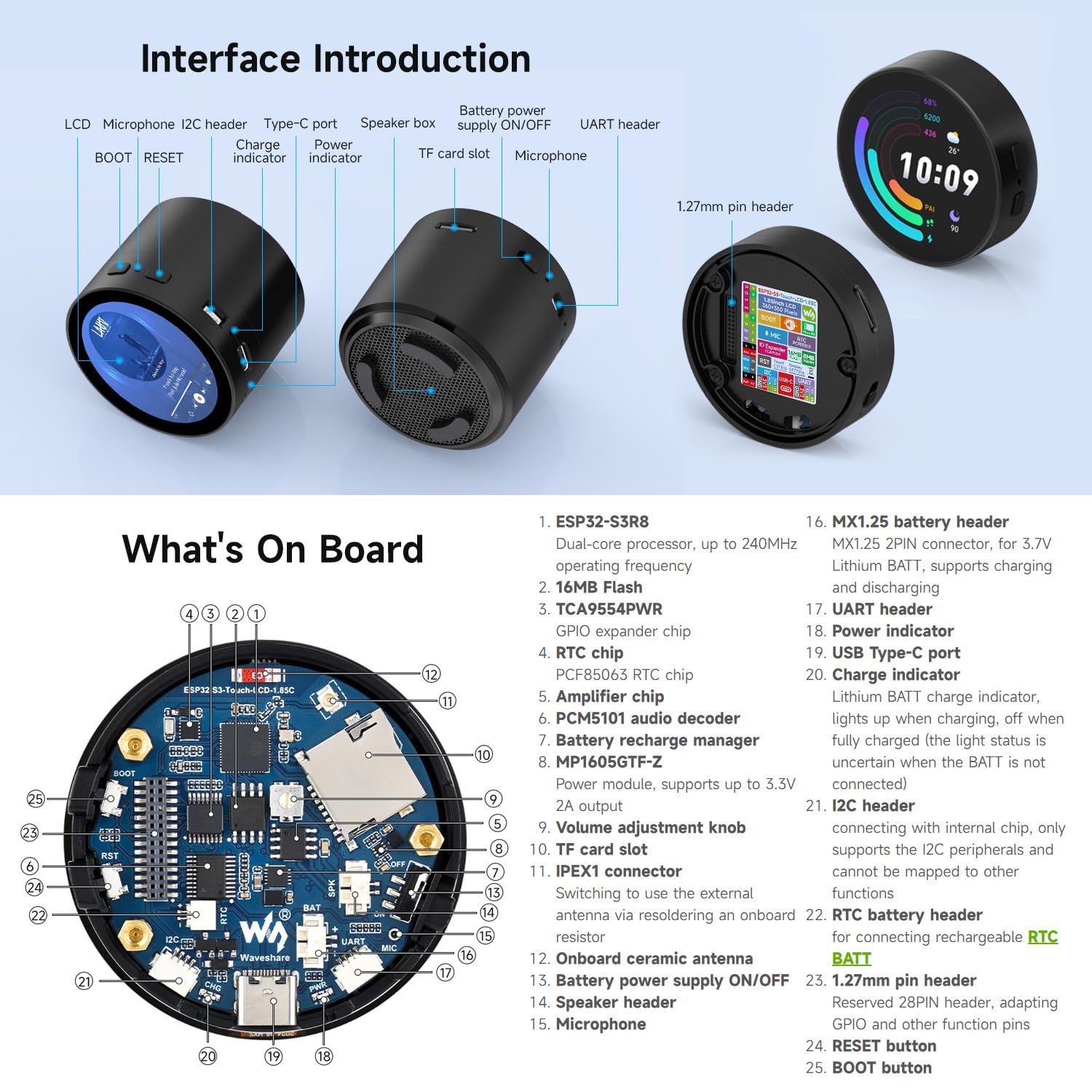

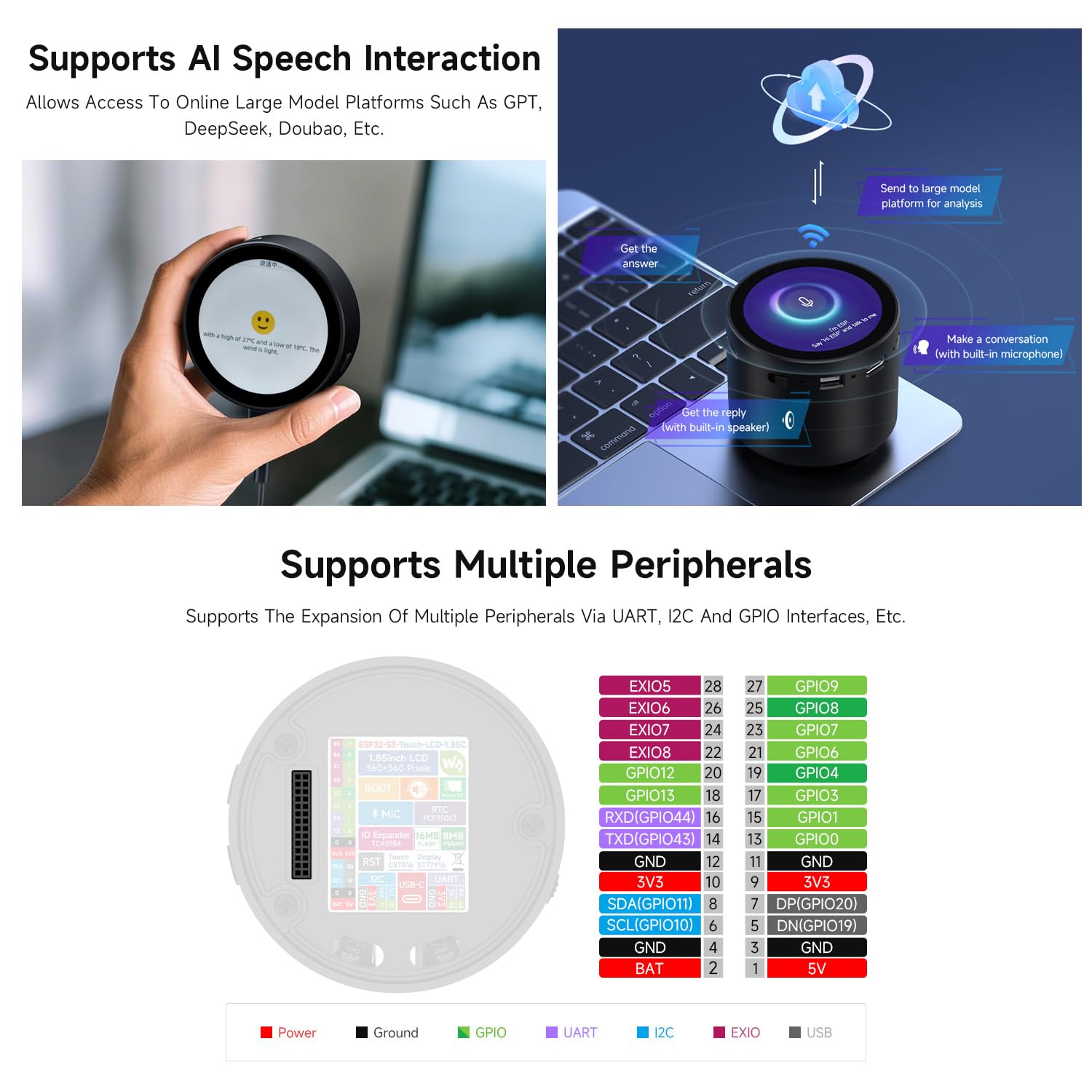

- Adapting UART, I2C and some IO interfaces. Onboard audio decoder, Microphone, RTC sensor, TF card slot and batt recharge management module, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
