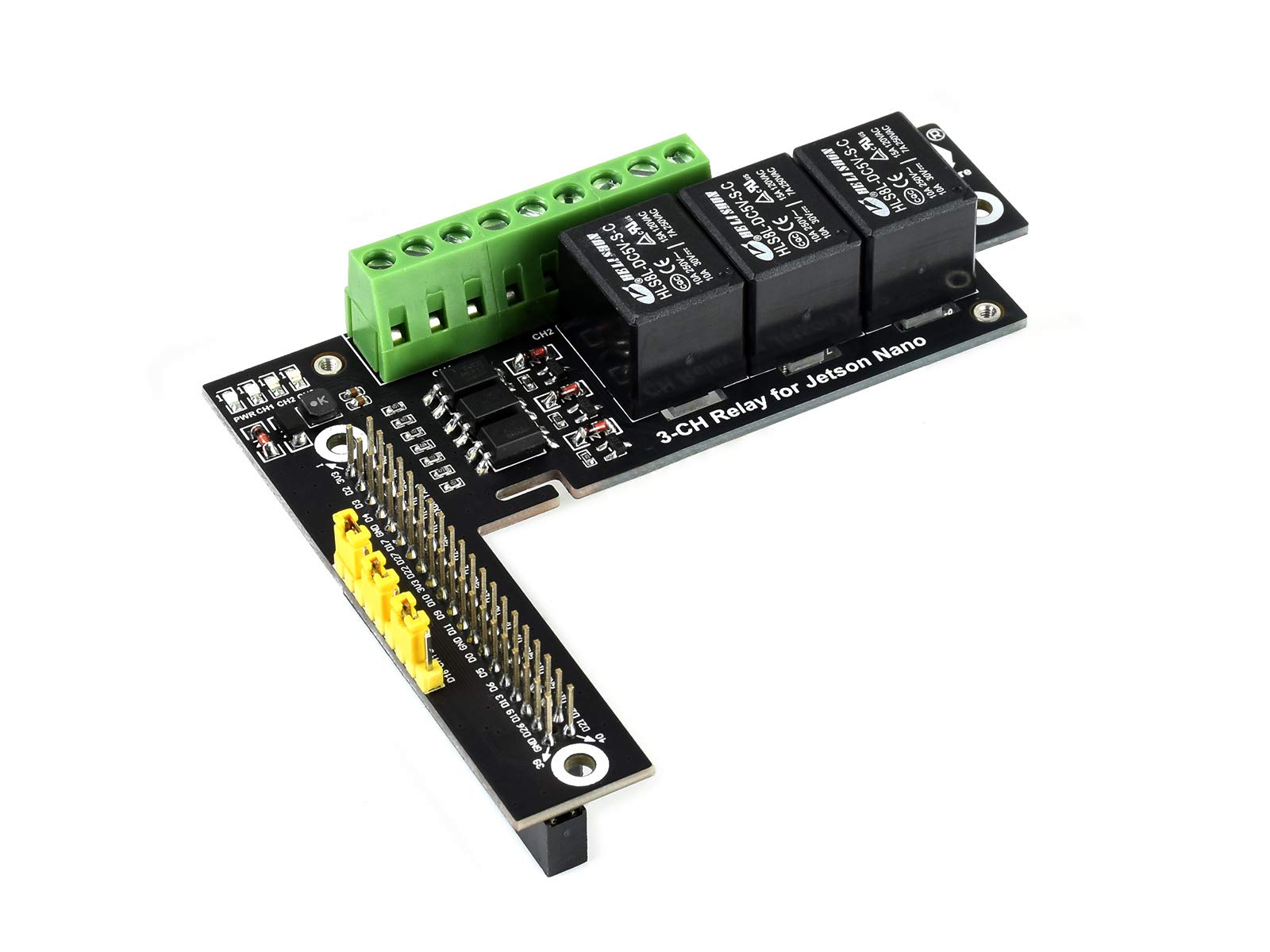

Waveshare 3-Ch Relay Expansion Board Designed for Jetson Nano Optocoupler Isolation
€18.95
€66.00
Save 71%
🔥 people are purchasing this right now!
30-Day Risk-Free Returns & Money-Back Guarantee
⚡ Low Stock: Only items left!
Successfully added to your bag!
Product Overview
Type de contact: Normalement ouvert
Type de fixation: Montage sur panneau
Marque: Waveshare
Mode de fonctionnement: Manuel
Puissance en watts: 1250 Watts

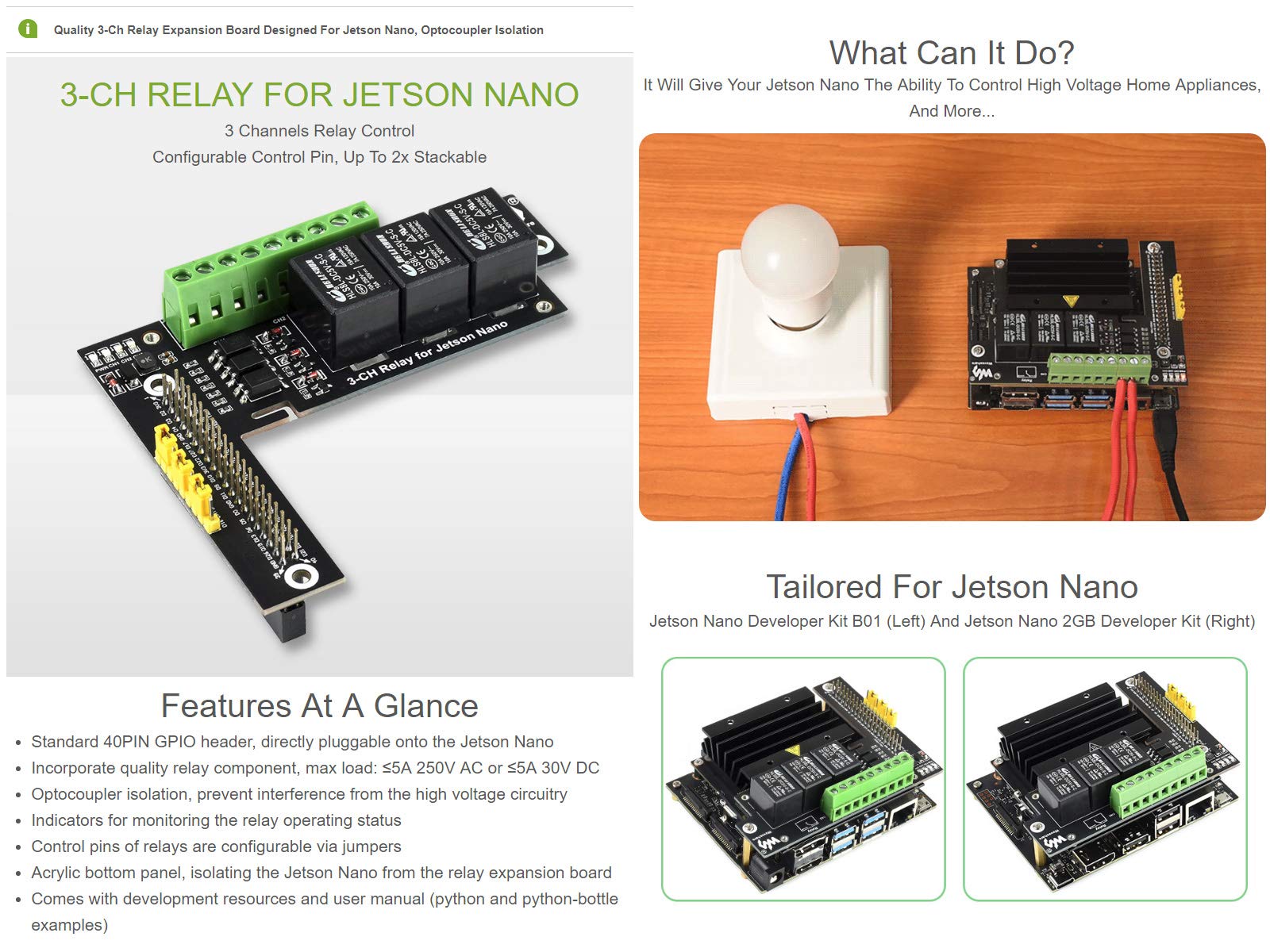

- 3 Channels Relay Control.Configurable Control Pin, Up To 2x Stackable.

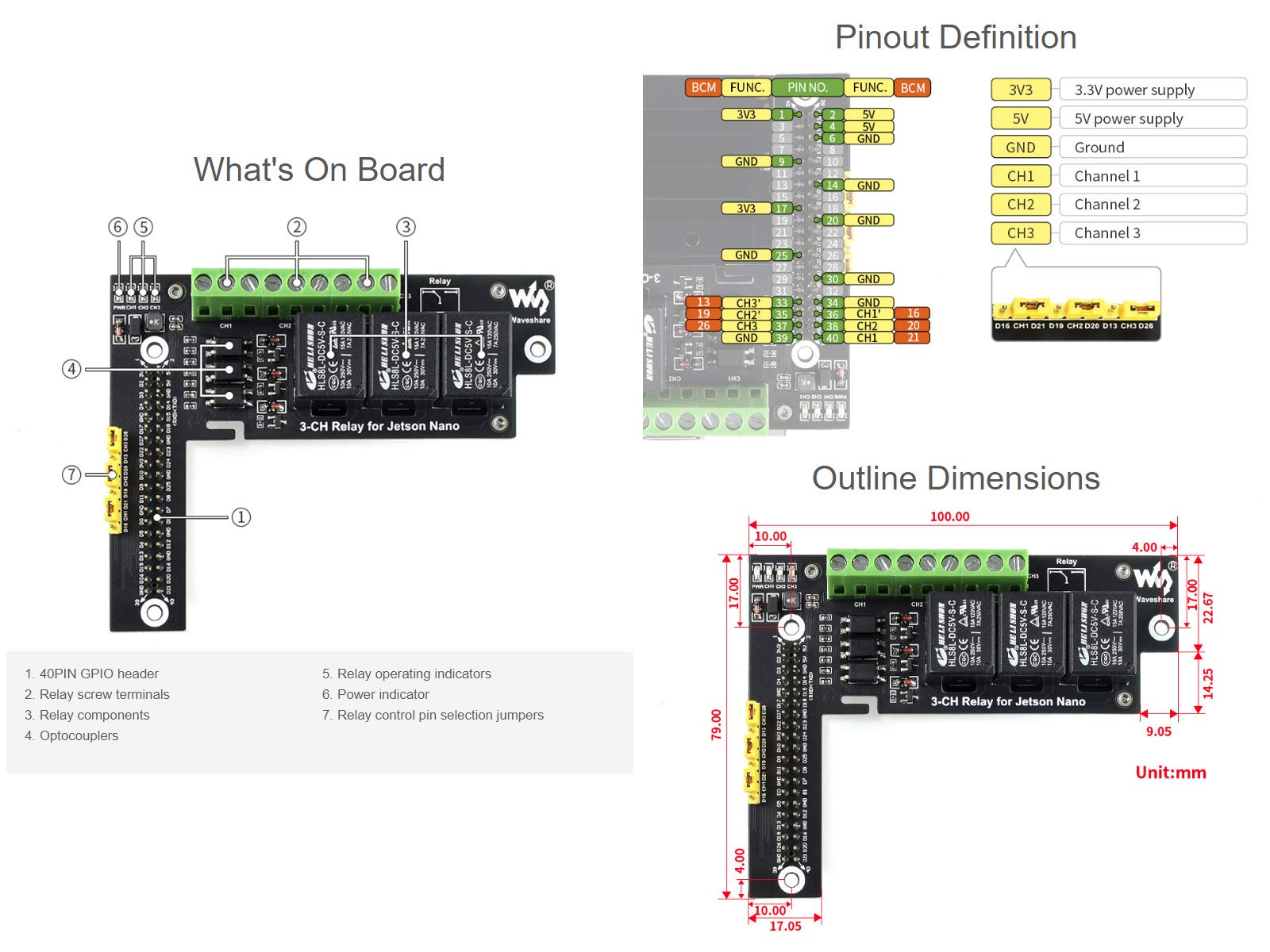

- Standard 40PIN GPIO header, directly pluggable onto the Jetson Nano. Incorporate quality relay component, max load: ≤5A 250V AC or ≤5A 30V DC.

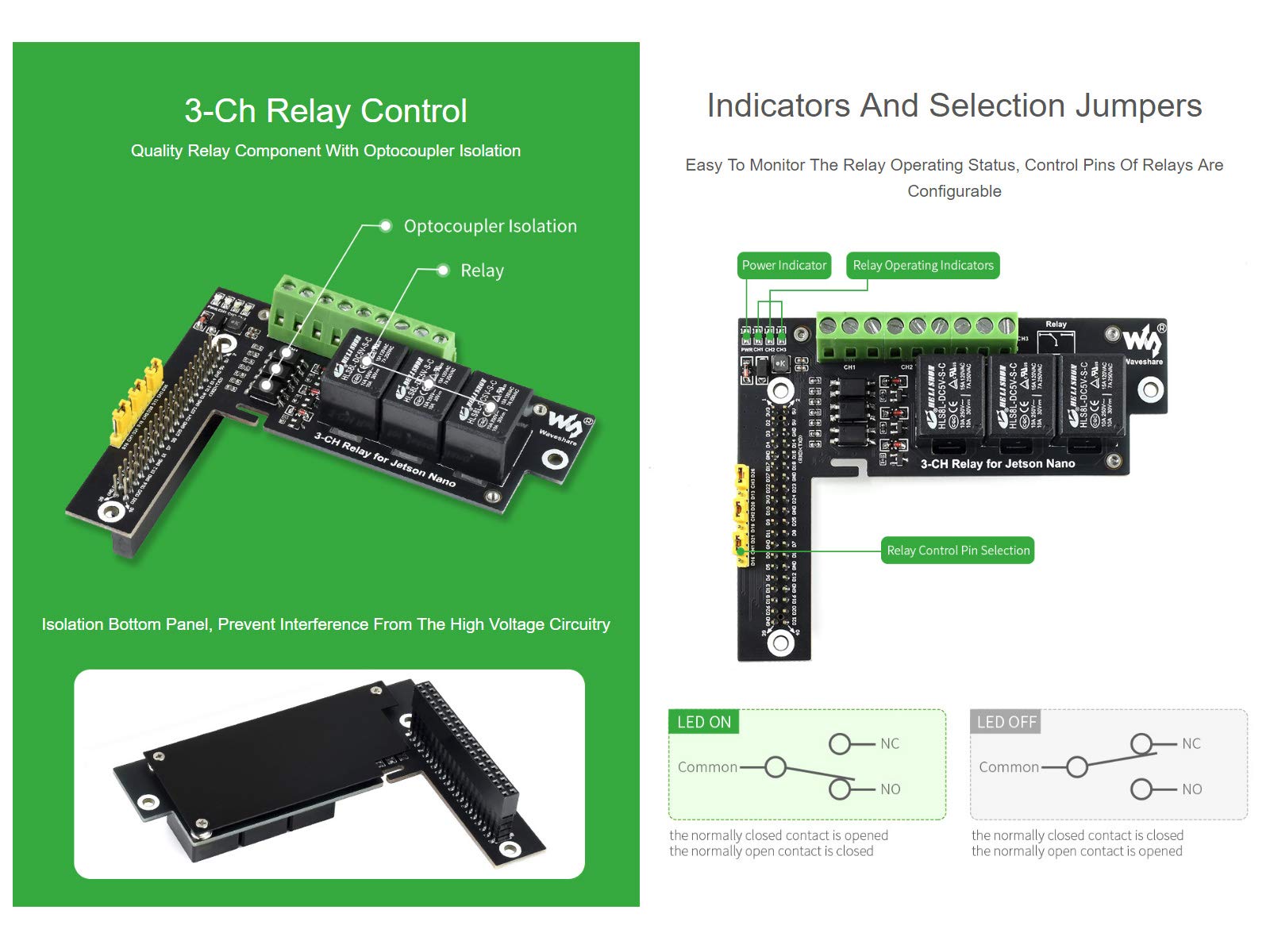

- Optocoupler isolation, prevent interference from the high voltage circuitry.
- Indicators for monitoring the relay operating status. Control pins of relays are configurable via jumpers.

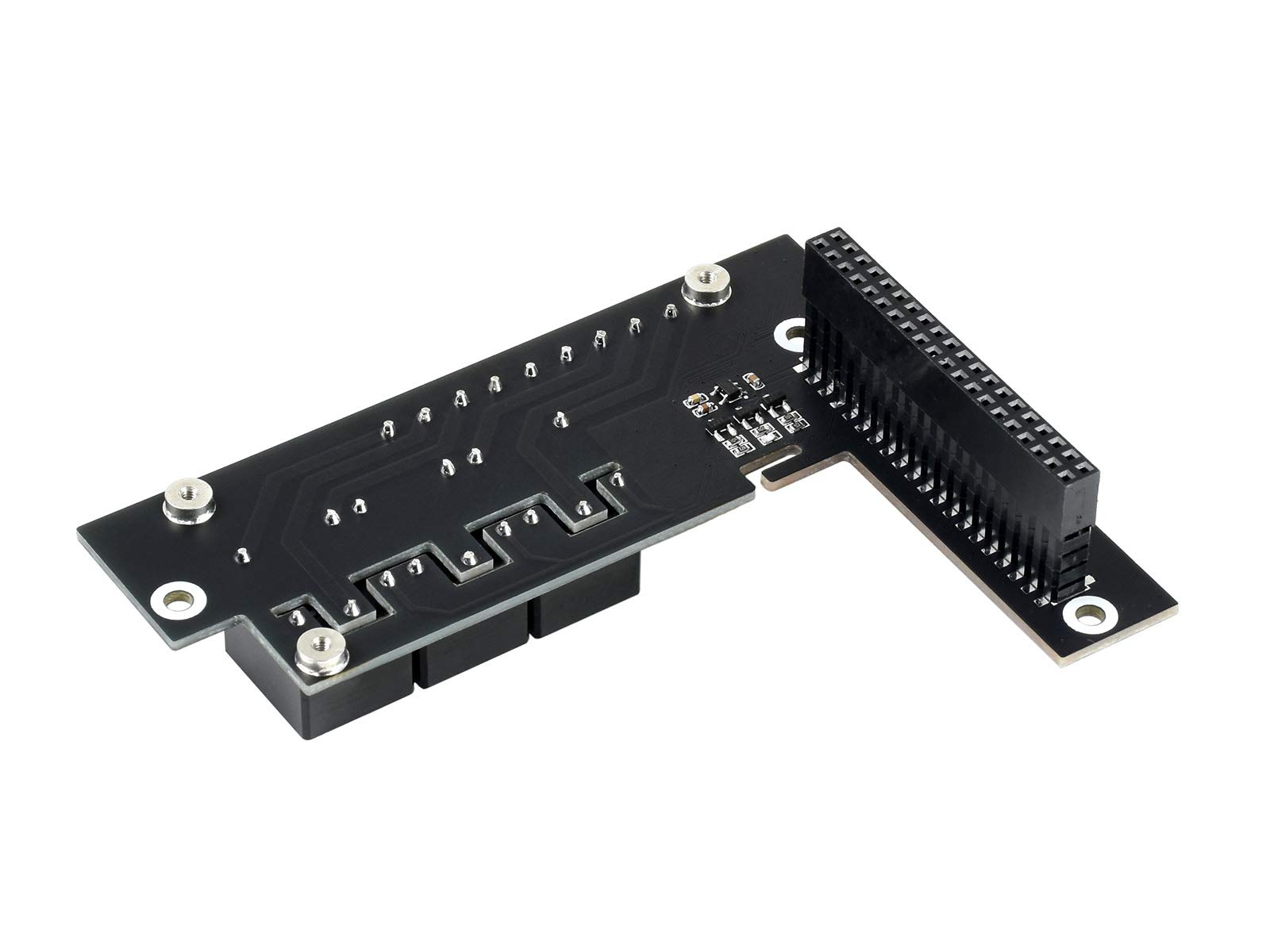

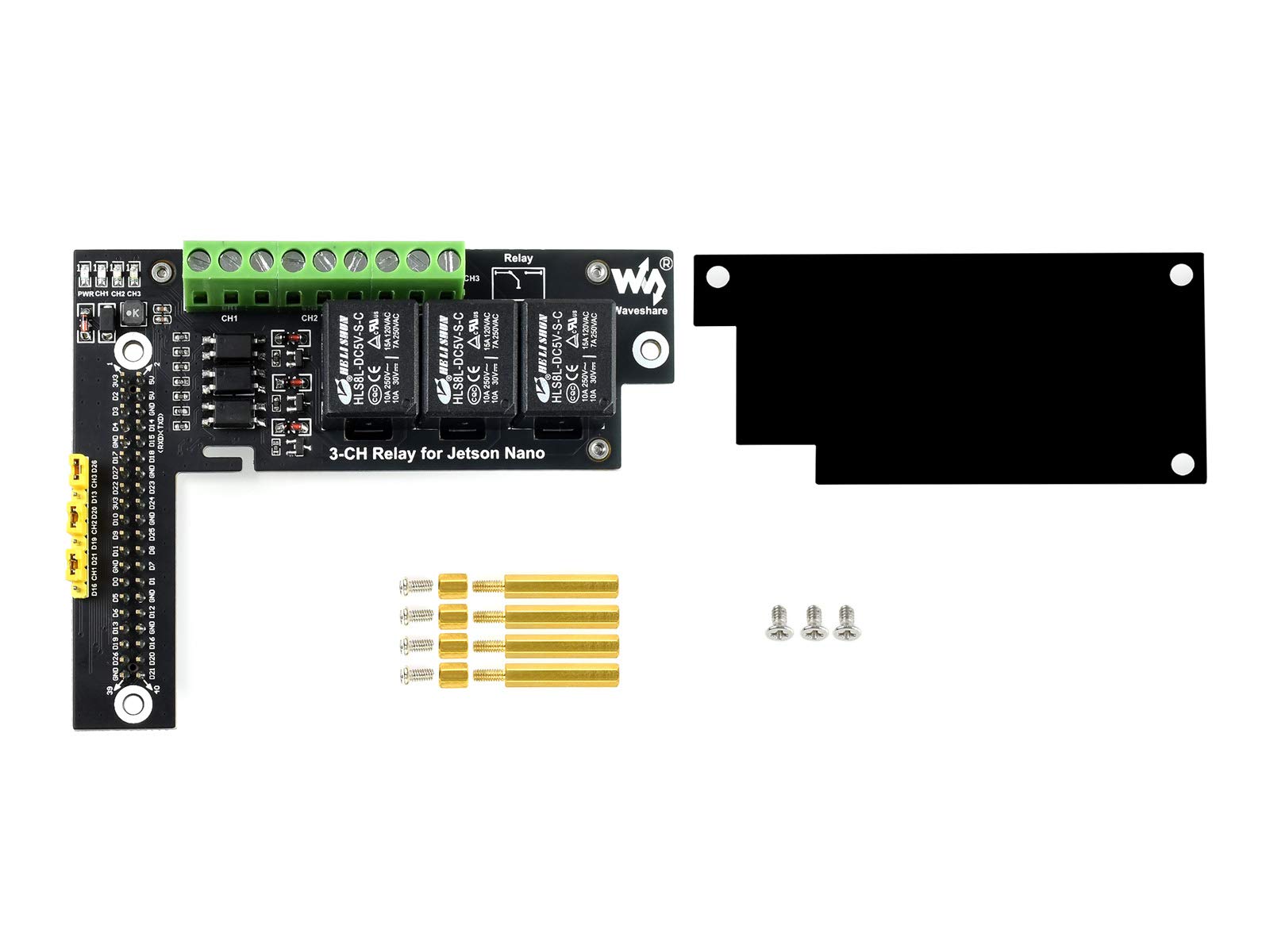

- Acrylic bottom panel, isolating the Jetson Nano from the relay expansion board.
